Ground Coverage In Photogrammetry

The bigger the value of the image GSD the lower the spatial resolution of the image and the less visible details. Ground distance in X plane Altitude focal length of lens X length of camera sensor.

01 Introdcution To Photogrammetry

The area of ground coverage that is seen on the photo is less than at smaller scales.

Ground coverage in photogrammetry. Project Type Ground Coverage Flight Pixel Along Flight Line Height Resolution Length Width ft inpixel ft ft Urban Projects plains 1250 150 960 1728 Urban Projects mountainous terrain 1500 180 1152 2074. Small Scale - Smaller-scale photos eg. Due to the fact that vertical accuracy is usually the limiting factor in the photogrammetric process the flying height is often derived by the contour interval of the finished map.

Photogrammetry is used in a variety of industries with a huge range of applications from forensic crime scene mapping to use in precision agriculture. The Ground Sampling Distance GSD is the distance between two consecutive pixel centers measured on the ground. The space photogrammetry embraces all aspects of extraterrestrial photography and subsequent measurement wherein the camera may be fixed on earth contained in an artificial satellite or positioned on the moon or a planet.

Areas covered by dense forest. Ground distance in Y plane Altitude focal length of lens Y length of camera sensor. Is the length of a side of the square on ground covered by the photograph.

If the objectplane at a distance is at an angle to the camera image plane then this coverage holds only for the distance. Since the Elios 2 has a 4K camera you can achieve a maximum accuracy for Ground Sampling Distance GSD of 025mmpixel. Note this calculates for a plane parallel to the camera image plane.

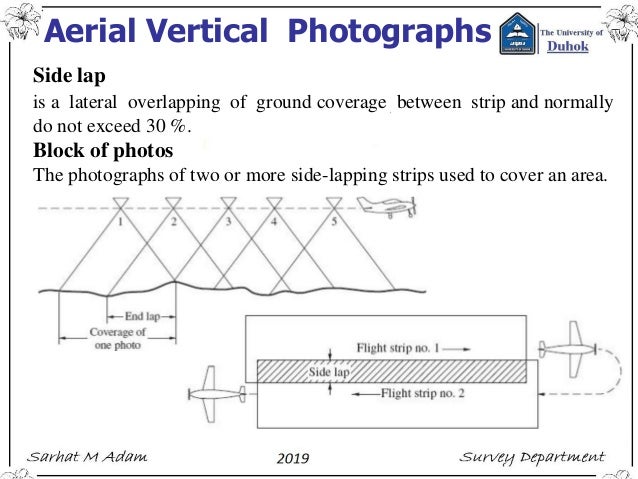

Endlap is the repeat of the some portion of the successive photographs. In photogrammetry a single ray of light is the straight line. 150 000 cover large areas in less detail.

Table VII-1 shows the relationship between flying heights ground coverage and resolution quality. The area covered in a photograph or ground coverage is inversely proportional to the scale of the photograph. In equation form the horizontal ground coordinates of any point are given by 10-4 X p x p H h p f Y p y p H h p f where XpYp ground coordinates of point p xpyp photocoordinates.

The ground coverage of a photo obtained with any given format is a function of focal length f and flying height above ground H. Use this calculator to determine the approximate coverage field of view and the ground pixel size of a particular lens and camera at a given distance. Ground sampling distance GSD in photogrammetry.

X camera sensor x size y camera sensor y size f focal length h height above ground And I am looking for. Ay photo y ground distance ax photo x ground distance Would these formulas work. Deep canyons or high buildings that conceal ground surface.

The line on the ground which is just under the camera lens during photo capturing is called the nadir line. Ground coverage Once average photograph scale and camera format dimensions have been selected the ground surface area covered by a single photograph may be readily calculated. A small scale photo simply means that ground features are at a smaller less detailed size.

Is the air base the distance between the successive photos. The area covered in a photograph or ground coverage is inversely proportional to the scale of the photograph. All the photographs taken with the degree of endlap.

The term photo interpretation is applied to that branch of photogrammetry wherein aerial or terrestrial. Desert or plains areas sandy beaches and snow the photograph as uniform shades with little texture. In terrestrial photogrammetry photographs are taken from a fixed position on ground while in the aerial photogrammetry an aircraft with camera setup is used to take photographs from the air flying over the ground.

The GSD is calculated based on. Basic Information Photogrammetry can not be used successfully over the following types of terrain. The area of ground coverage that is seen on the photo is less than at smaller scales.

With the advent of SfM and its implementation in off-the-shelf products photogrammetry is now an ideal tool for ground-based structural studies because it generates digital 3D models of natural outcrop quarriesmine sites and hand specimens Fig. The area of ground coverage that is seen on the photo is greater than at larger scales. Overlap R G-BG x 100 Note that B cannot be larger than G For example if the area on ground covered be a single photograph is 15000 X 15000 ft and the air.

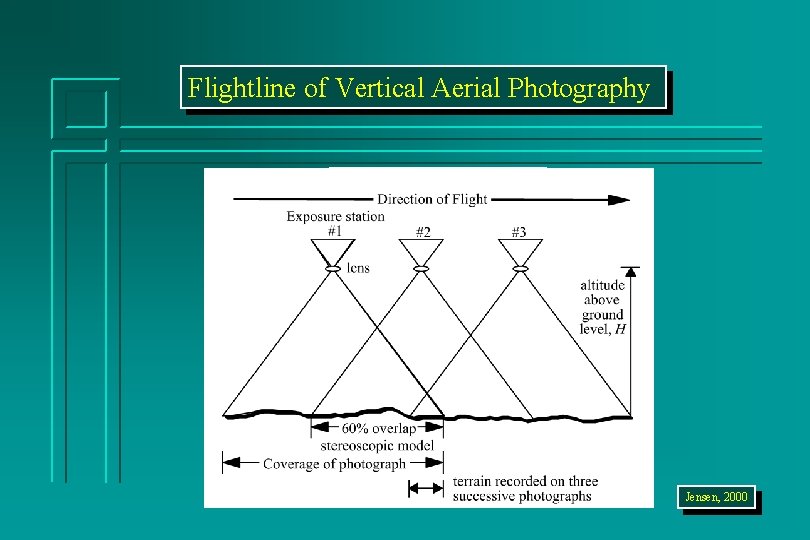

The ground coverage of a photo obtained with any given format is a function of focal length f and flying height above ground H. The imaged point on the ground the focal point of the camera lens and the image of the point on the film or imaging array of a. Three fundamental points must always fall on this straight line.

Making sure that I compare the proper units to the proper units. This not only ensure that end part of photographs is covered but also it is essential for the stereoscopic coverage. The theoretical maximum accuracy of a 3D model created using visual data collected by the Elios 2 is three times the Ground Sampling Distance ie the size of pixels as they appear on the surface of the model.

Early photogrammetry relied on high vantage points or hot air balloons to gather aerial dataNowadays there is a higher prevalence of using drones to collect surveying data alongside ground-level image capture. That increasing the flying height in turn increases the ground coverage per photograph and therefore reduces the necessary ground control. Small Scale Smaller scale photos eg.

Then the overlap percent of G is. Hfx ax hfy ay Does this make sense. 120000 cover large areas in less detail.

Neat Model it is important coverage since it is represent the. Photogrammetry consists two branches. 1 Horizontal ground coordinates can be calculated by dividing each photocoordinate by the true photo-graphic scale at the image point.
